#!/usr/bin/python3
import os
import cv2 as cv
import numpy as np
# returns total number of circles detected in the image
def detectCircles(file):
img = cv.imread(file, cv.IMREAD_GRAYSCALE) # Read the image in grayscale
assert img is not None, "file could not be read, check with os.path.exists()"
img = cv.GaussianBlur(img, (7, 7), 1.5) # Apply GaussianBlur to reduce noise
circles = cv.HoughCircles(
img,
cv.HOUGH_GRADIENT,
dp=1, # Inverse ratio of the accumulator resolution to the image resolution.
minDist=50, # Minimum distance between detected centers.
param1=80, # Upper threshold for the internal Canny edge detector.
param2=43, # Threshold for center detection.
minRadius=0, # Minimum radius to be detected.
maxRadius=0 # Maximum radius to be detected.
)
return circles[0].shape[0]
if __name__=="__main__":
directory="Shapes"
files=os.listdir(directory) # List all the files in the directory
files.sort() # Sort the files in ascending order
for file in files:
file_path = os.path.join(directory, file) # Create the path to the file
NumCircles=detectCircles(file_path) # Call the function to detect the number of circles
print(f"Image {file} has {NumCircles} Circles") # Print the result
Output
------

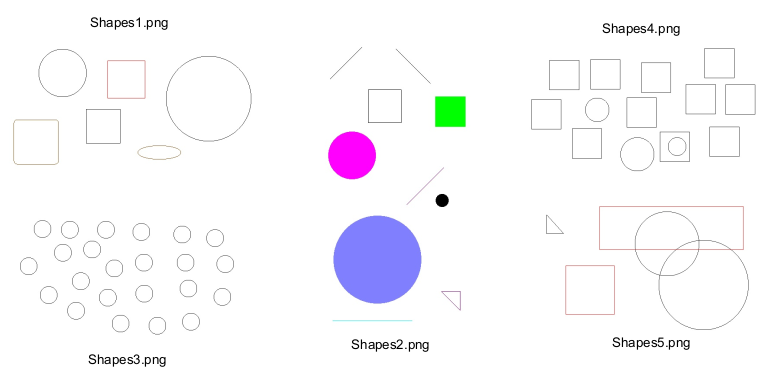

Image shapes1.png has 2 Circles
Image shapes2.png has 3 Circles
Image shapes3.png has 23 Circles
Image shapes4.png has 3 Circles
Image shapes5.png has 2 Circles
|
#!/usr/bin/python3
import cv2
cam = cv2.VideoCapture(0)
cv2.namedWindow('webcam screenshot')
img_counter = 0
while True:
ret,frame = cam.read()
if not ret:
print('failed to grab frame')
break
cv2.imshow("test",frame)
k = cv2.waitKey(1)
if k == 27:
print("Escape key pressed, clossing loop")
break
if k == 32:
img_name = f'opencv_frame_{img_counter}.png'
cv2.imwrite(img_name,frame)
print('screenschot taken')
img_counter += 1
cam.release()
cv2.destroyAllWindows()
|
